Wall Indicator Post

(SKYEG-WP)

Description

Fire valves are essential components in firefighting systems, designed to control the flow of water or other firefighting agents in emergency situations. They are commonly used in fire protection systems to ensure rapid and reliable water supply for sprinkler systems, fire hydrants, and other firefighting equipment. Fire valves play a critical role in safeguarding lives and property across various industries, including commercial, industrial, and residential buildings.

  • Statement:Wall indicator post provides a means to operate a valve installed behind a wall and able to indicate the open or shut position of the valve.
  • Coating:Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

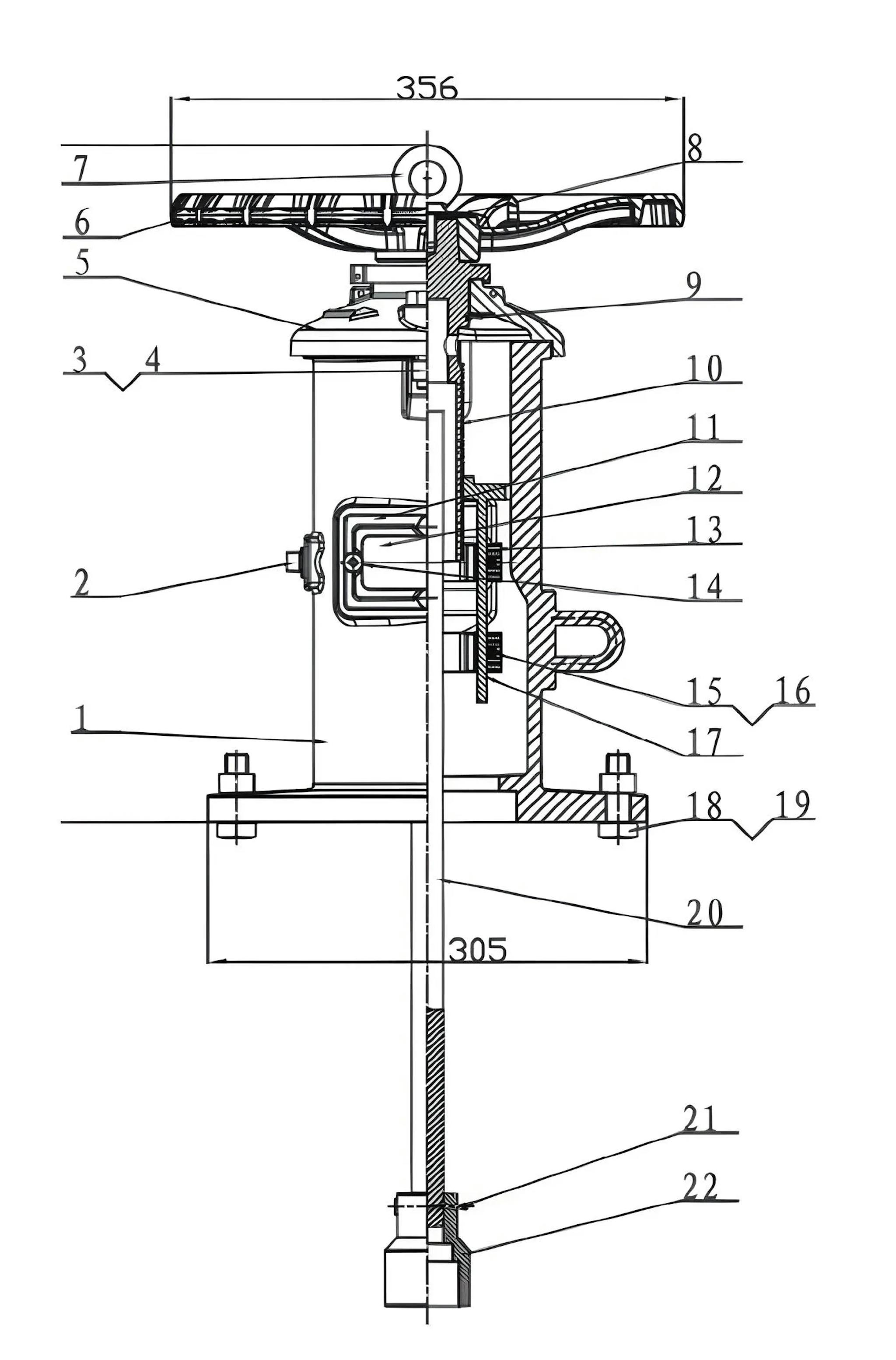

Material Specification

|| = Other Options

No.Part NameMaterialOption
01Hex NutCS Zinc PlatedAISI 304, AISI 316
02Hex BoltCS Zinc PlatedAISI 304, AISI 316
03SocketASTM A536, 65-45-12
04Cotter PinAISI 304
05Base FlangeASTM A536, 65-45-12
06Hex BoltCS Zinc PlatedAISI 304, AISI 316
07Hex NutCS Zinc PlatedAISI 304, AISI 316
08StandpipeCS ASTM A53
09Stem 1” SquareCS AISI 1045
10BodyASTM A536, 65-45-12
11Locking WrenchASTM A536, 65-45-12
12Target Carrier NutAISI 304 (DN100-400) HPb59-1(DN450-600)
No.Part NameMaterialOption
13Hex BoltCS Zinc PlatedAISI 304, AISI 316
14Hex NutCS Zinc PlatedAISI 304, AISI 316
15Hex BoltCS Zinc PlatedAISI 304, AISI 316
16Instructs The PlaneASTM A536, 65-45-12
17Window ClassPlexiglass
18GasketEPDM
19Operating NUTAISI 304
20Top SectionASTM A536, 65-45-12
21Snap RingStainless Steel AIS11066
22PlugMalleable Rion Galvanized
23Square NutCS Zinc PlatedAISI 304, AISI 316
24Hex BoltCS Zinc PlatedAISI 304, AISI 316
WALL INDICATOR POST UL/FM APPROVED
