Water Flow Indicator With Retard
(SKYEG-FSW) FM APPROVED
Description
Fire valves are essential components in firefighting systems, designed to control the flow of water or other firefighting agents in emergency situations. They are commonly used in fire protection systems to ensure rapid and reliable water supply for sprinkler systems, fire hydrants, and other firefighting equipment. Fire valves play a critical role in safeguarding lives and property across various industries, including commercial, industrial, and residential buildings.
- •Connection Ends:AWWA C606
- •Working Pressure:363PSI and 300PSI, 200PSI and 250PSI available upon request
- •Temperature Range:0℃ - 80℃
- •Coating:Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

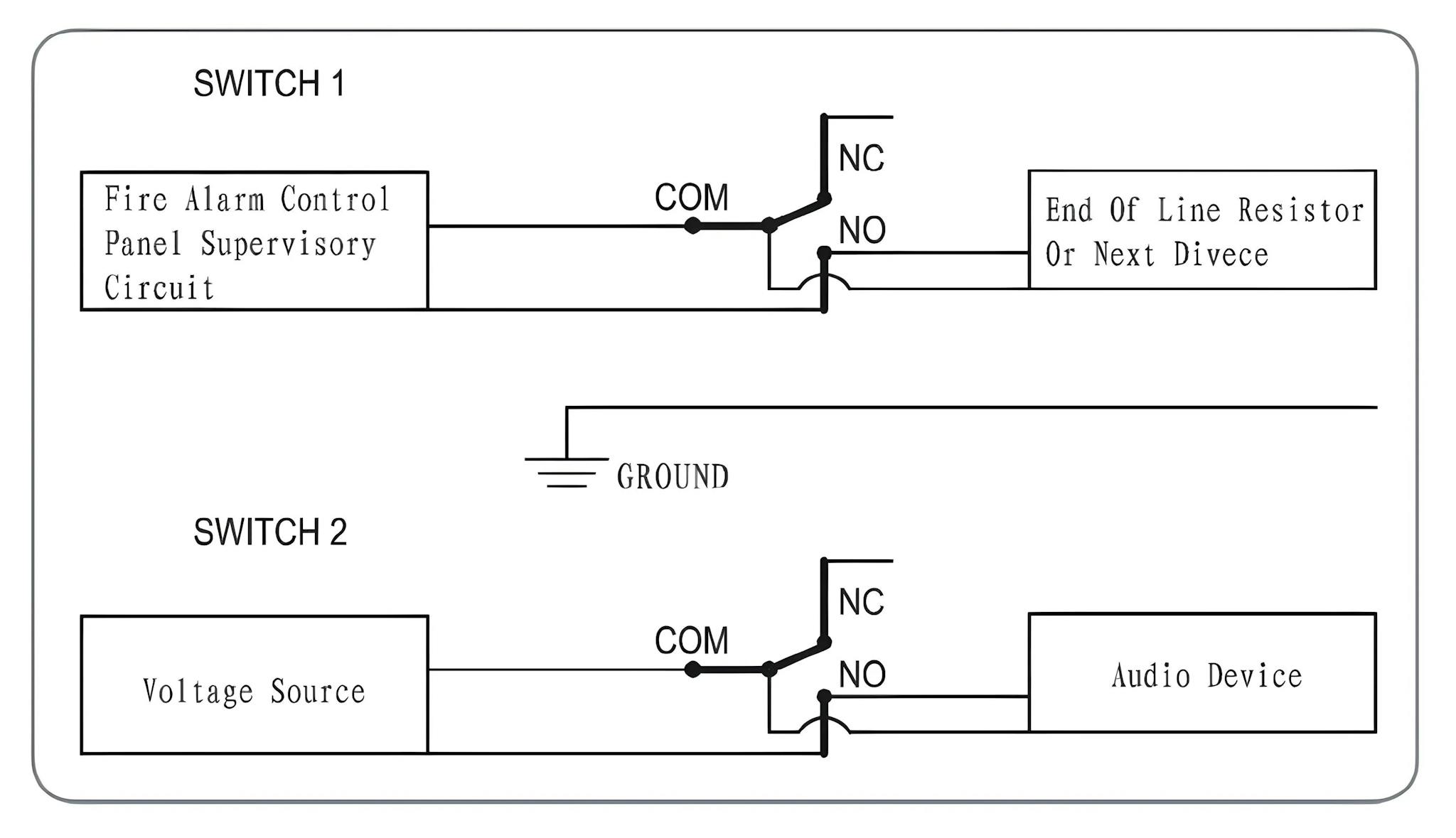

- •Electical Ratings:125/250VAC 5A 24/30VDC 3A
- •Minimum Flow Rate For Alarm:4-10 gpm
Material Specification
|| = Other Options
Dimensions
| DN | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | A | b | C | CERTIFICATE | d | e | HOLE_DIA | r |
| 2" | 50 | 116 | 100 | 63 | UL/FM | 140 | 83.5 | 30 | 60.3 |
| 2.5" | 65 | 120 | |||||||
| 2.5" | 65 | 122 | 76.1 | ||||||
| 3" | 80 | 145 | 94 | 51 | 88.9 | ||||
| 4" | 100 | 185 | 94.5 | 114.3 | |||||
| 5" | 125 | 212 | 139.7 | ||||||
| 5" | 125 | 141.3 | |||||||
| 6" | 150 | 254 | 95 | 165.1 | |||||
| 6" | 150 | 168.3 | |||||||
| 8" | 200 | 298 | 219.1 | ||||||
| 10" | 250 | 381 | 97.5 | 70 | 273.0 | ||||
