Sans 664 Socket NRS GATE VALVE
(SKYZA5XC103), PN16
Description
Gate valves are used to control the flow of medium in piping systems. They are widely utilized in potable water, water supply, drainage, sewage disposal, irrigation, air conditioning, fire protection, as well as the chemical and energy industries.
- •Design Standard:SANS 664 DIN EN 1171
- •Socket Connection:is Suitable for PVC-U Pipes of Class 4,6,9,12 or 16 to SANS 966-1
- •Working Pressure:PN16
- •Temperature Range:0℃ - 80℃
- •Coating:Fusion Bonded Epoxy Coating in accordance with SANS 664/ANSI/AWWA C550
Material Specification
|| = Other Options

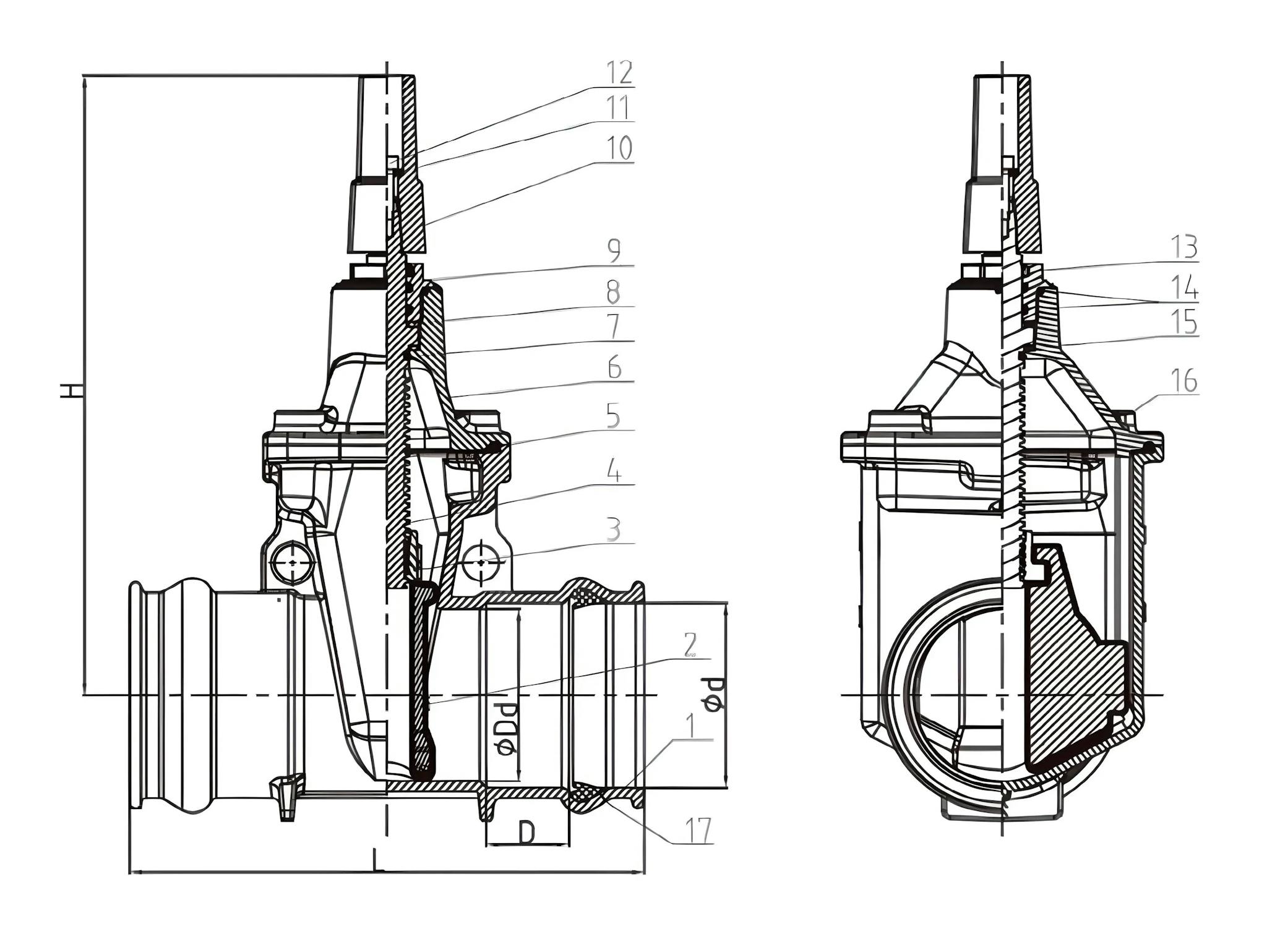

Dimensions
| DN | PN | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| Inch | mm | Pipe Dn | D Min | D Min | Dd | H | L | |
| 50 | - | 16 | 63 | 63.4 | 42 | 50 | 280 | 250 |
| 65 | - | 16 | 75 | 75.4 | 65 | 318 | 270 | |
| 80 | - | 16 | 90 | 90.4 | 44 | 80 | 348 | 280 |
| 100 | - | 16 | 110 | 110.5 | 47 | 100 | 372 | 300 |
| 150 | - | 16 | 160 | 160.6 | 54 | 150 | 472 | 350 |
| 200 | - | 16 | 200 | 200.7 | 60 | 200 | 576 | 400 |
| 250 | - | 16 | 250 | 250.9 | 68 | 250 | 659 | 450 |
| 300 | - | 16 | 315 | 316.1 | 78 | 300 | 778 | 500 |
