Jet/Spray Branch-Pipe
ALUMINIUM/PLASTIC
Description
SKY Fire Cabinets are designed to store Fire Hose Reels and firefighting equipment. Made primarily from carbon steel, stainless steel options are available upon request. Each cabinet is carefully crafted, from material preparation to fabrication and surface coating. Carbon steel cabinets feature a durable oven-baked "Red" epoxy/polyester powder coating, while stainless steel cabinets (Type 304 or 316) are available in brushed or mirror finishes.
- The SKY hand-held branch-pipe is made from aluminum and is equipped with shut, jet, and spray controls to manage water flow. The branch pipe features a male instantaneous coupling inlet that can be easily connected to a fire hose to deliver water or foam to extinguish fires.:
- > LPCB Approval.
- > Handheld Branch Pipes are
- > manufactured in compliance with BS336 standard.
- > Working pressure 16 bar, flow rate 240 LPM @ 6 bar (Jet) and 230 LPM @ 6 bar (Spray).
- > Body and Tip made of Aluminum.
- > Pipe material made of Polyamide.

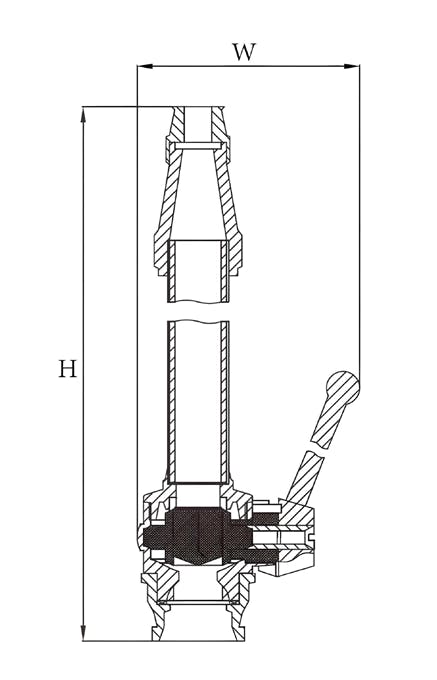

Material Specifications 02
Type
Model
H(mm)
D(mm)
Inlet
Nozzle Size
SKYEG-16A
Aluminium, Black
415
165
BS336, Male
13
SKYEG-16P
Rubber, Red
440
165
BS336, Male
13
Type:SKYEG-16A
Model:Aluminium, Black
H(mm):415
D(mm):165
Inlet:BS336, Male
Nozzle Size:13
Type:SKYEG-16P
Model:Rubber, Red
H(mm):440
D(mm):165
Inlet:BS336, Male
Nozzle Size:13
Material Specification
Sr.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Description
Nozzle
Washer
Pipe
Washer
O-Ring
Nut
Handle
Screw
Gasket
O-Ring
Washer
O-Ring
Washer
Male coupling
Body
Ball assembly
Bonnet
Washer
