Bs En 593 Universal Wafer Butterfly Valve

(SKYD71XK, D371XK), PN10/16

Description

Gate valves are used to control the flow of medium in piping systems. They are widely utilized in potable water, water supply, drainage, sewage disposal, irrigation, air conditioning, fire protection, as well as the chemical and energy industries.

  • Design Standard:BS EN 593
  • Face to Face dimension:ISO 5752 Series 20
  • Top Flange Standard:ISO 5211
  • Connection Ends:GB/T17241.6, BS EN 1092 PN10/PN16, ASME B16.5 CL150, JIS B2212 10K, BS 10 TABLE D, AS 2129 TABLE E
  • Working Pressure:PN10/16
  • Temperature Range:0℃ - 80℃
  • Coating:Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

Material Specification

|| = Other Options

No.Part NameMaterial
01BodyEN-GJS-450-10
02SeatEPDM || NBR, PTFE
03DiscEN-GJS-450-10 || SS304, SS316, ASTM B148 C95400
04StemSS420 || SS304, SS316, SS431
05O-RingNBR || EPDM
06LeverCarton Steel || Aluminum, Ductile Iron
07Gear BoxEN-GJS-450-10

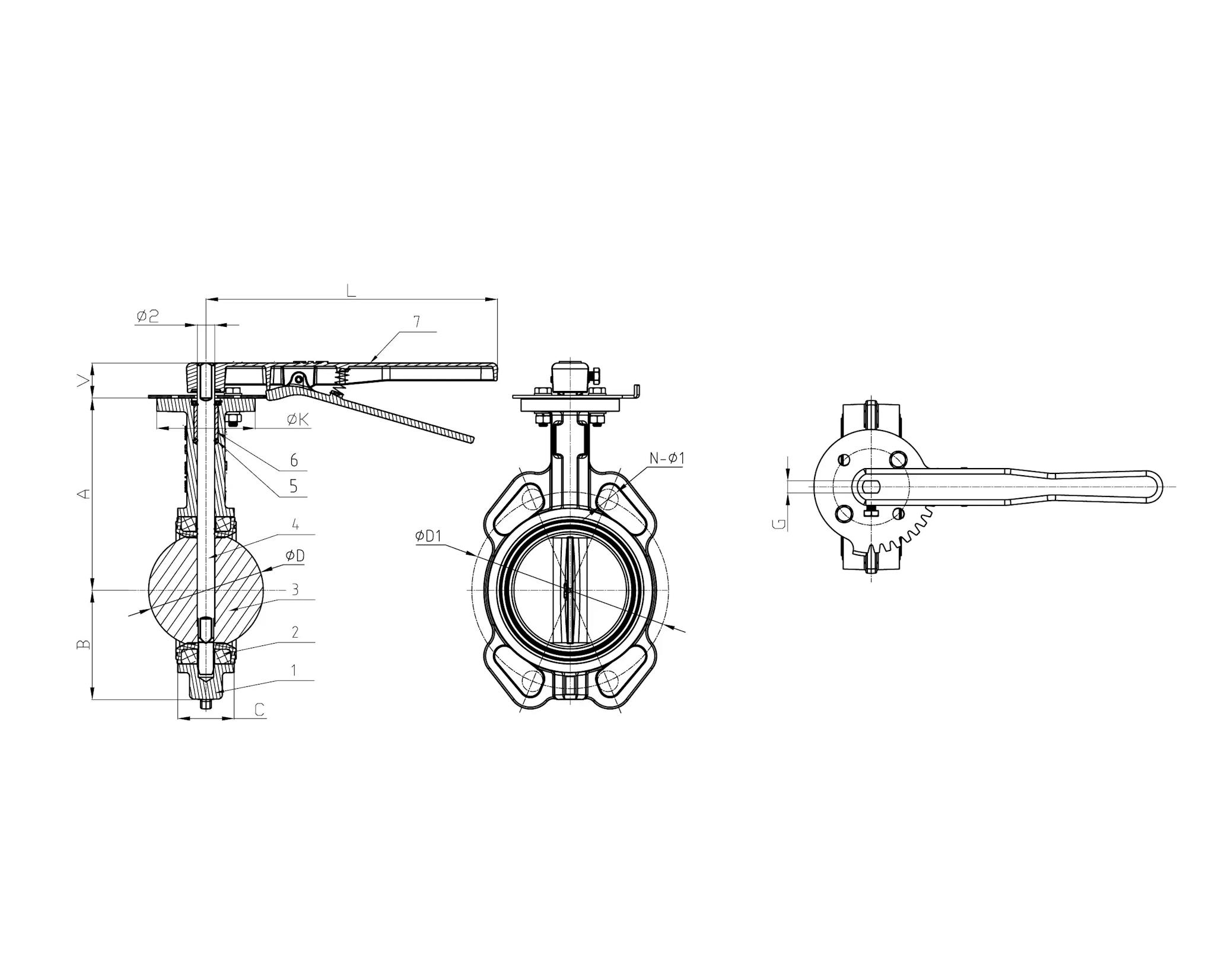

BS EN 593 59 UNIVERSAL WAFER

Dimensions

DNDimensions (mm)
InchmmABCDIso5211LL1L2N ØΦ1Sxsv
1.5"4013864.533110F052121451644-M161359X930
2"50140.543
2.5"651537246145179
3"80157.588160183.58-M16
4"10017610052180145202135
5"12519112156210F0725614521914X14
6"150202.5128240230.58-M20
8200243.516260295F10373195278.512-M2027017X1739
10"2502731946835531112-M2422X22
12"30031122378410490349
