As 2638.2 Flanged Resilient OS&Y
(SKYXZ41X), PN16
Description
Gate valves are used to control the flow of medium in piping systems. They are widely utilized in potable water, water supply, drainage, sewage disposal, irrigation, air conditioning, fire protection, as well as the chemical and energy industries.
- •Connection Ends:Flange to AS4087/AS2129
- •Working Pressure:PN16
- •Temperature Range:0℃ - 80℃
- •Coating:Fusion Bonded Epoxy Coating in according with AS4158
Material Specification
|| = Other Options

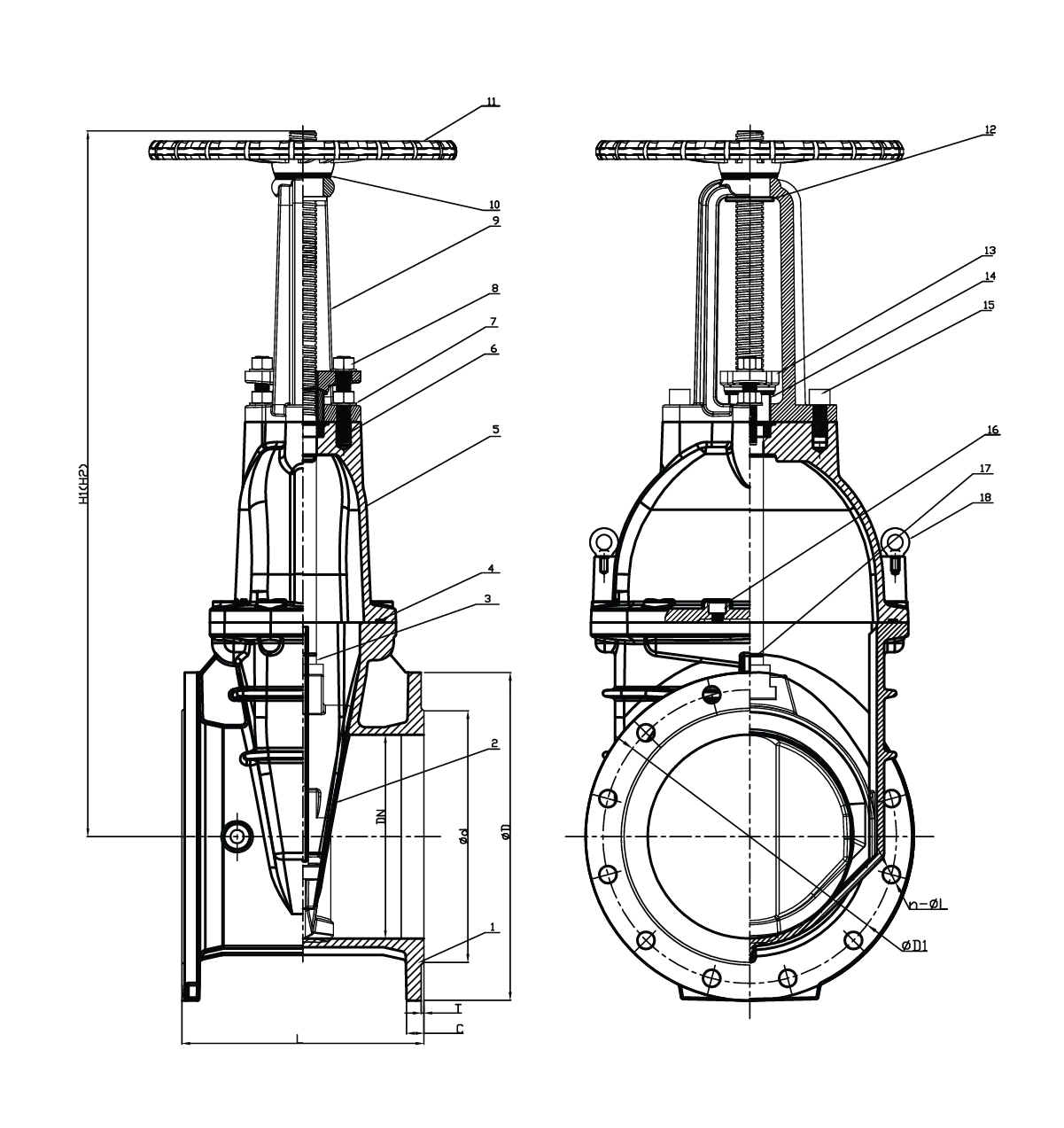

Dimensions
| DN | PN | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | C | D1 | d | D(min) | H1_CLOSE | H2_OPEN | L | N-ØL | T | |
| 3" | 80 | 16 | 18 | 146 | - | 185 | 408 | 490 | 203 | 4-Φ18 | 3 |
| 4" | 100 | 16 | 20 | 178 | 154 | 215 | 471 | 573 | 229 | ||
| 6" | 150 | 16 | 23 | 235 | 211 | 280 | 593 | 743 | 267 | 8-Φ18 | |
| 8" | 200 | 16 | 292 | 268 | 335 | 774 | 975 | 292 | |||
| 10" | 250 | 16 | 24 | 356 | 328 | 405 | 940 | 1190 | 330 | 8-Φ22 | |
| 12" | 300 | 16 | 30 | 406 | 378 | 455 | 1065 | 1370 | 356 | 12-Φ22 | |
