Grooved Wet Alarm Check Valve

(SKYEG-WAV)

Description

Fire valves are essential components in firefighting systems, designed to control the flow of water or other firefighting agents in emergency situations. They are commonly used in fire protection systems to ensure rapid and reliable water supply for sprinkler systems, fire hydrants, and other firefighting equipment. Fire valves play a critical role in safeguarding lives and property across various industries, including commercial, industrial, and residential buildings.

  • Connection Ends:Groove to AWWA C606
  • Working Pressure:300PSI, 200PSI and 250PSI available upon request
  • Temperature Range:0℃ - 80℃
  • Coating:Painting or Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

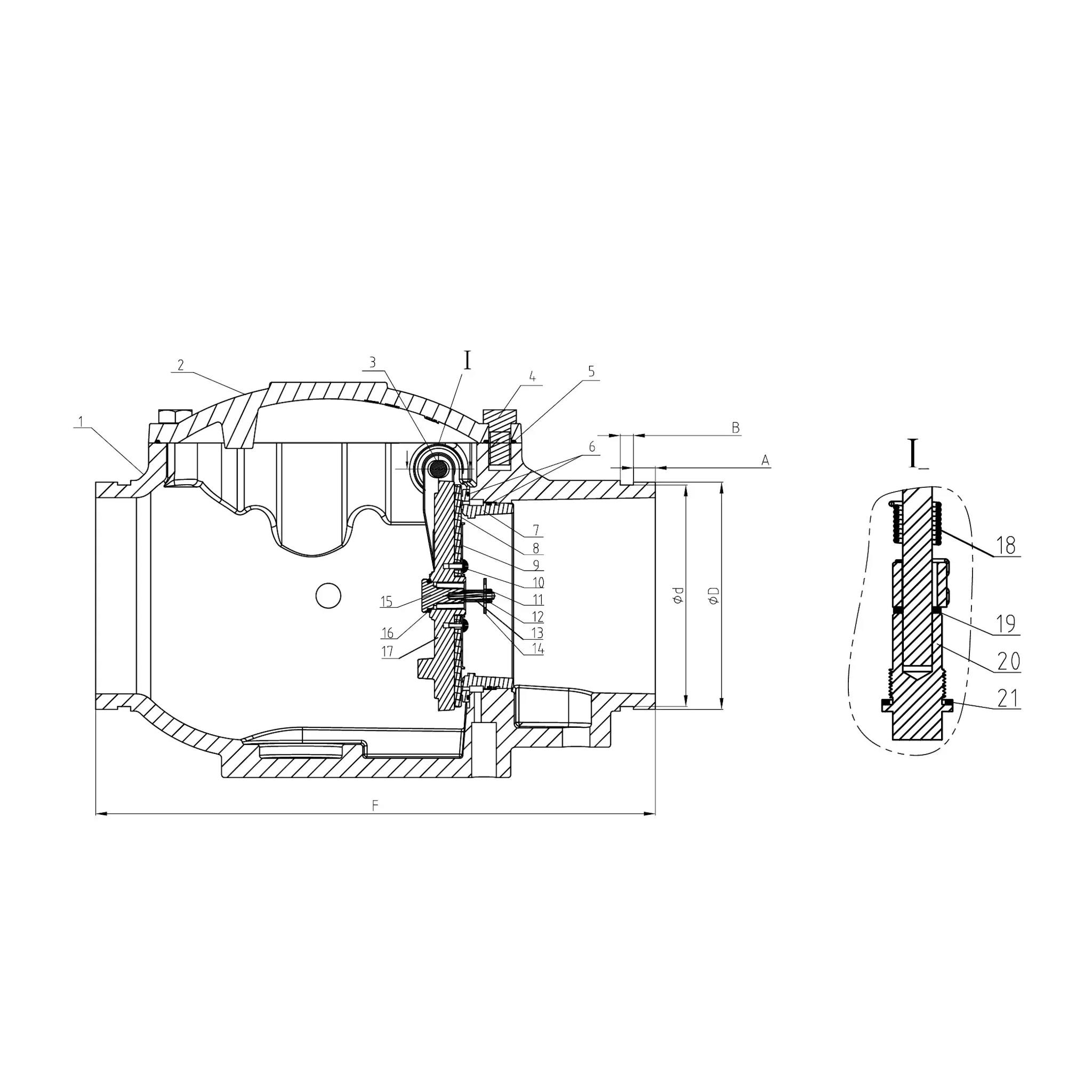

Material Specification

|| = Other Options

No.Part NameMaterial
01Valve BodyASTM A536 65-45-12
02BonnetASTM A536 65-45-12
03PinAISI 304
04Hex BoltCS Zinc Plated
05Body GasketEPDM
06O-RingNBR
07SeatC83600
08GasketEPDM
09Disc GlandAISI 304
10Slotted ScrewAISI 304
11Hexagonal NutAISI 304
No.Part NameMaterial
12Adjusting ScrewAISI 304
13Core TubeAISI 304
14Core BoardAISI 304
15Disc CoreC89833
16O-RingNBR
17DiscC89833
18SpringAISI 304
19Sealing Fillet GasketPTFE
20Sealing PlugAISI 304
21Sealing Fillet GasketPTFE
GROOVED WET ALARM CHECK VALVE

Dimensions

DNDimensions (mm)
InchmmAb¢d¢dFOD
3"8015.887.9388.984.94320.388.9
4"1009.53114.3110.08382114.3
6"150159154.5406.4159
6"150165.1160.9165.1
6"15.889.53168.3163.96168.3
8"20019.511.1219.1214.3446219.1

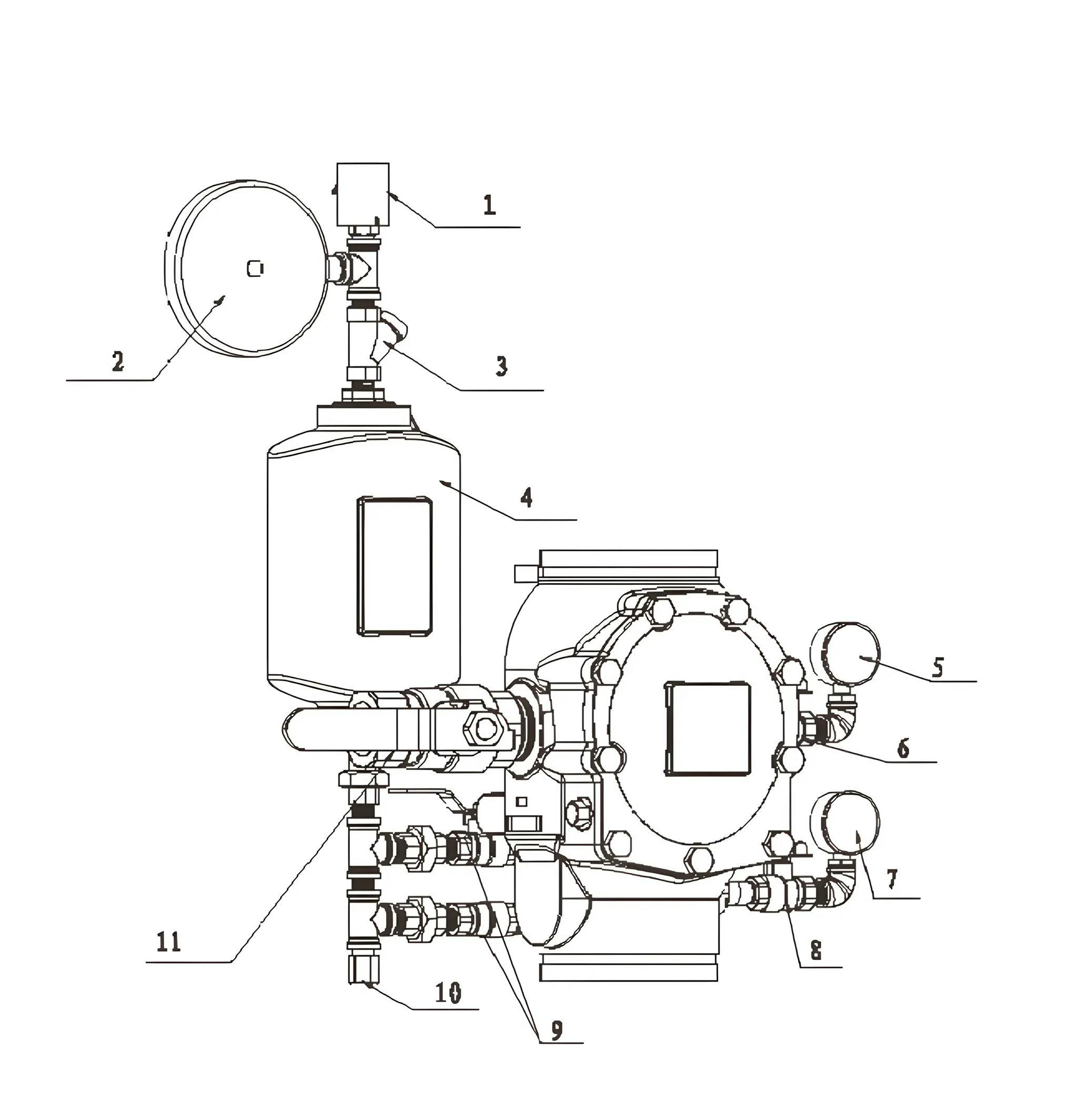

External Accessories

Part NumberPart NamePart NumberPart Name
1Pressure Switch7Drip Valve
2Alarm8Test Ball Valve
3Strainer9Pressure Gauge Ball Valve
4Retard Chamber10Pressure Gauge
5Drain Ball Valve11Pressure Gauge Ball Valve
6Alarm Ball Valve12Pressure Gauge
GROOVED WET ALARM CHECK VALVE
